Hallicrafters SX-110 Receiver

The Hallicrafters SX-110 receiver was manufactured from 1960 to 1963 and is a single conversion superheterodyne receiver with bands covering 80, 40, 20,  15 and 10 meter amateur bands, 11 meters citizen's band, broadcast band 540 - 1680 kc plus 3 shortwave bands covering 1680 kc - 34 mc.  Features include a slide rule bandspread dial calibrated for the amateur bands, separate bandspread tuning condenser, crystal filter, antenna trimmer, S-meter, one r-f and two i.f. stages.  It has seven tubes plus one rectifier.  It is 18 3/4 x 8 x 10 1/4 and weighs 32 pounds.  It sold for $160 - $170.00 new.

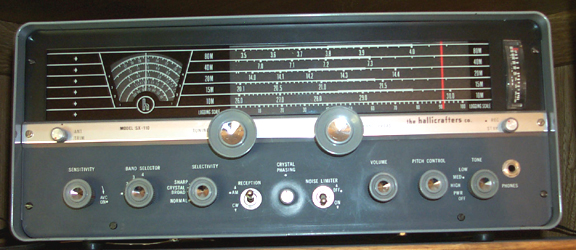

Front of SX-110 Receiver
